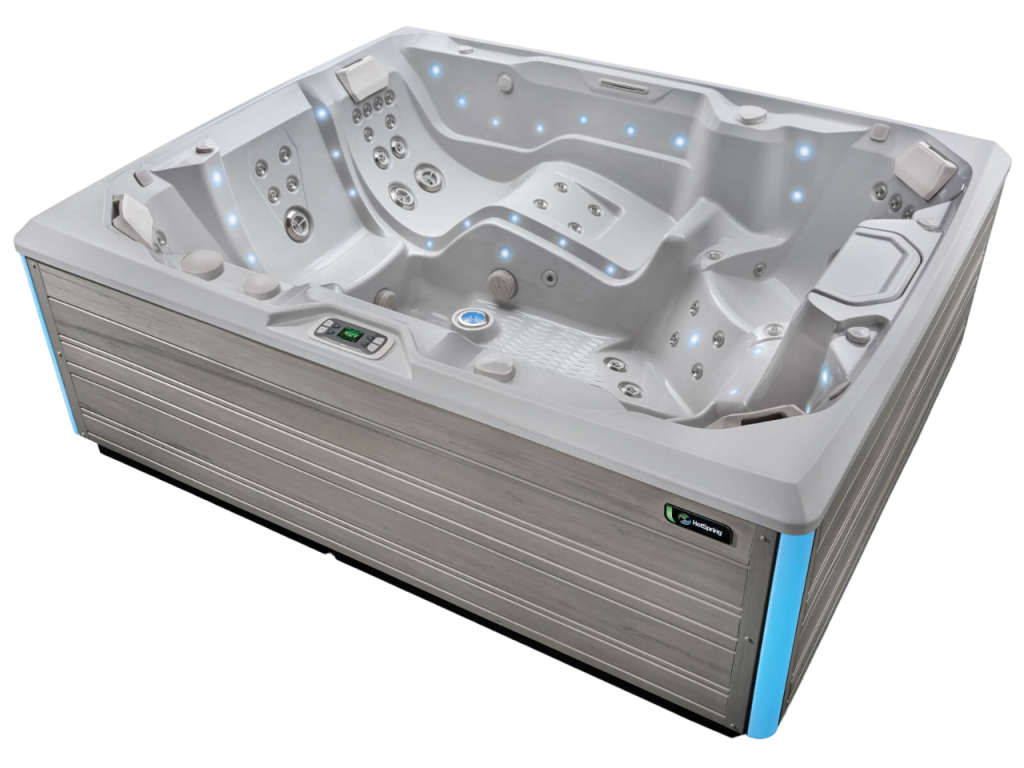

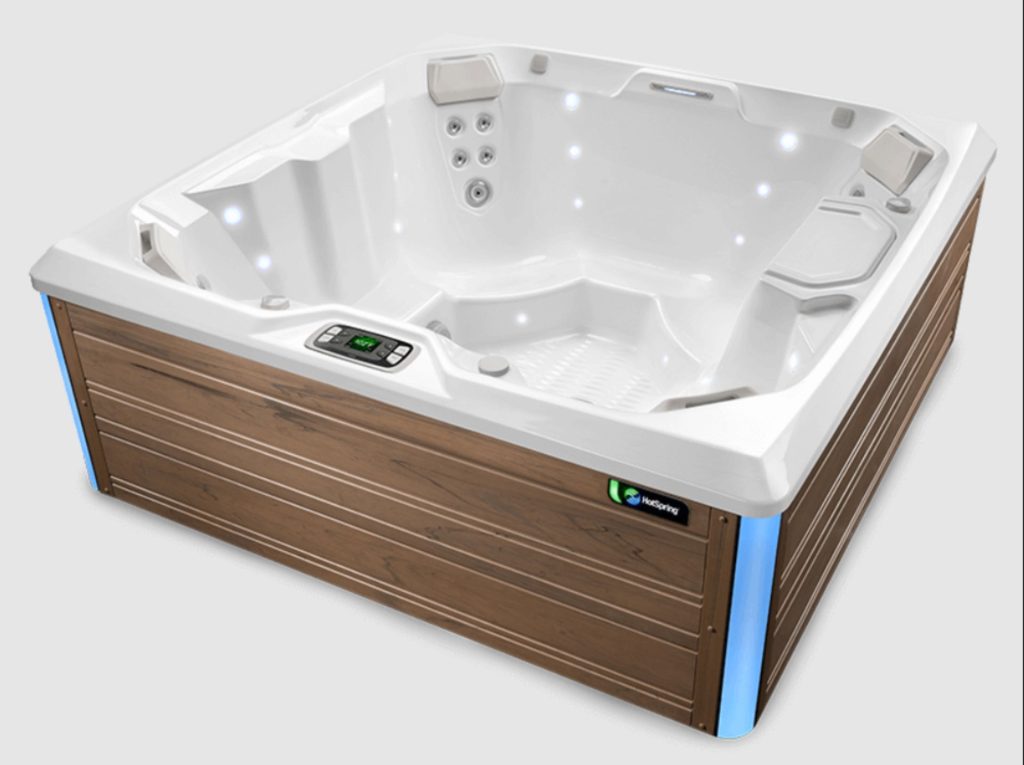

Prism™

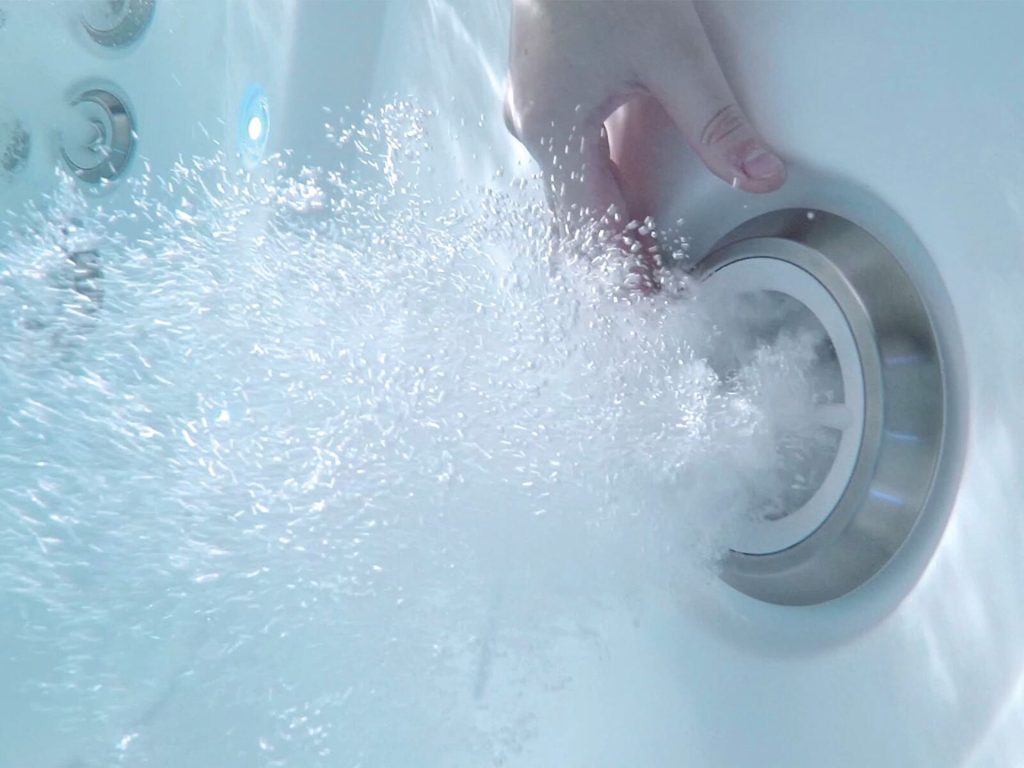

The extra large Prism is a premium seven-seat spa with a relaxing lounge seat and the JetStream® XL jet for an exceptional foot and leg massage.

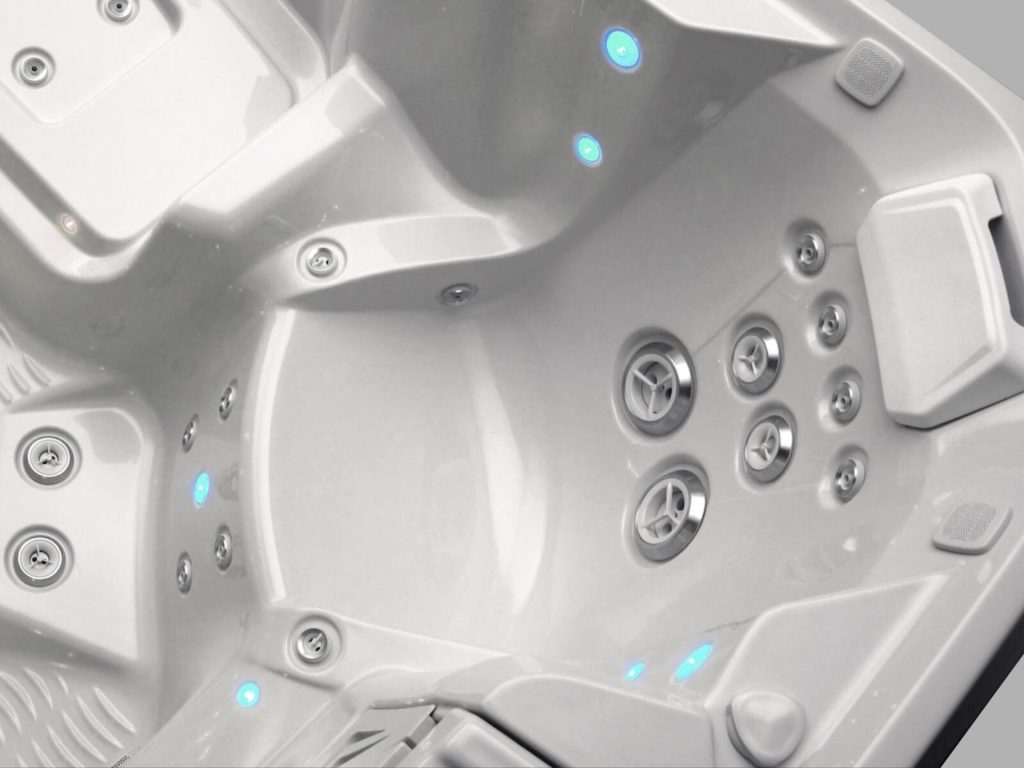

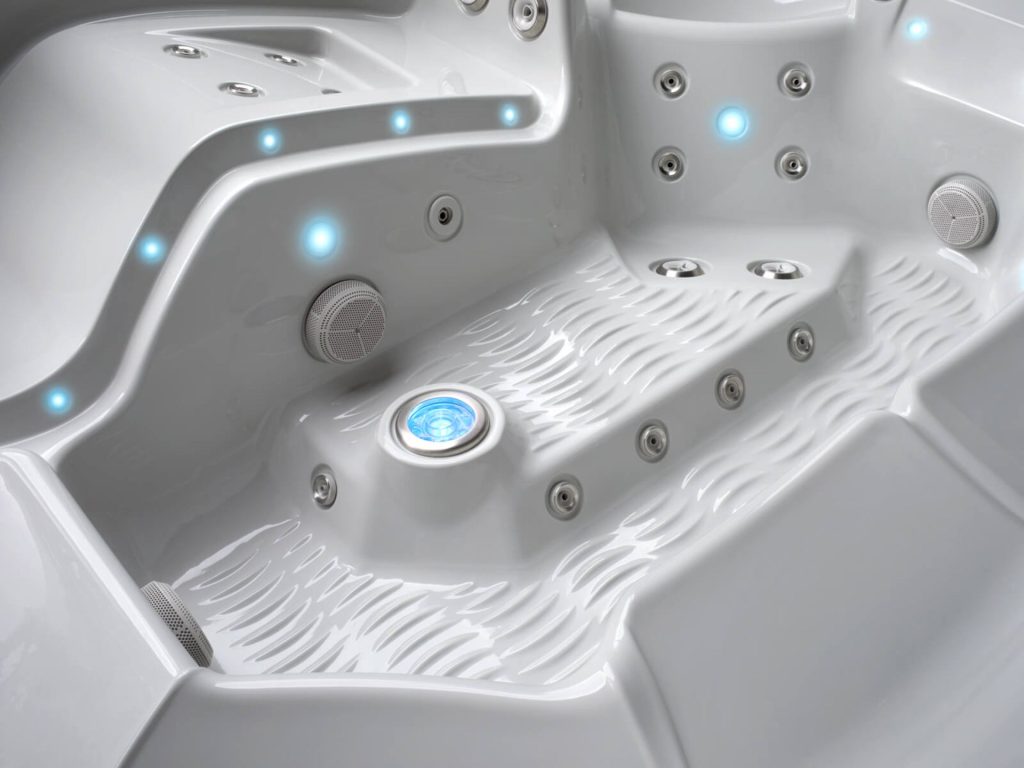

Prism™ Jet System
1 jet of this type on the Prism™. See the jet layout diagram for placement.
1 jet of this type on the Prism™. See the jet layout diagram for placement.
2 jets of this type on the Prism™. See the jet layout diagram for placement.
3 jets of this type on the Prism™. See the jet layout diagram for placement.
7 jets of this type on the Prism™. See the jet layout diagram for placement.
4 jets of this type on the Prism™. See the jet layout diagram for placement.
4 jets of this type on the Prism™. See the jet layout diagram for placement.
10 jets of this type on the Prism™. See the jet layout diagram for placement.
41 jets of this type on the Prism™. See the jet layout diagram for placement.
Prism™ Specifications
Seating Capacity
7

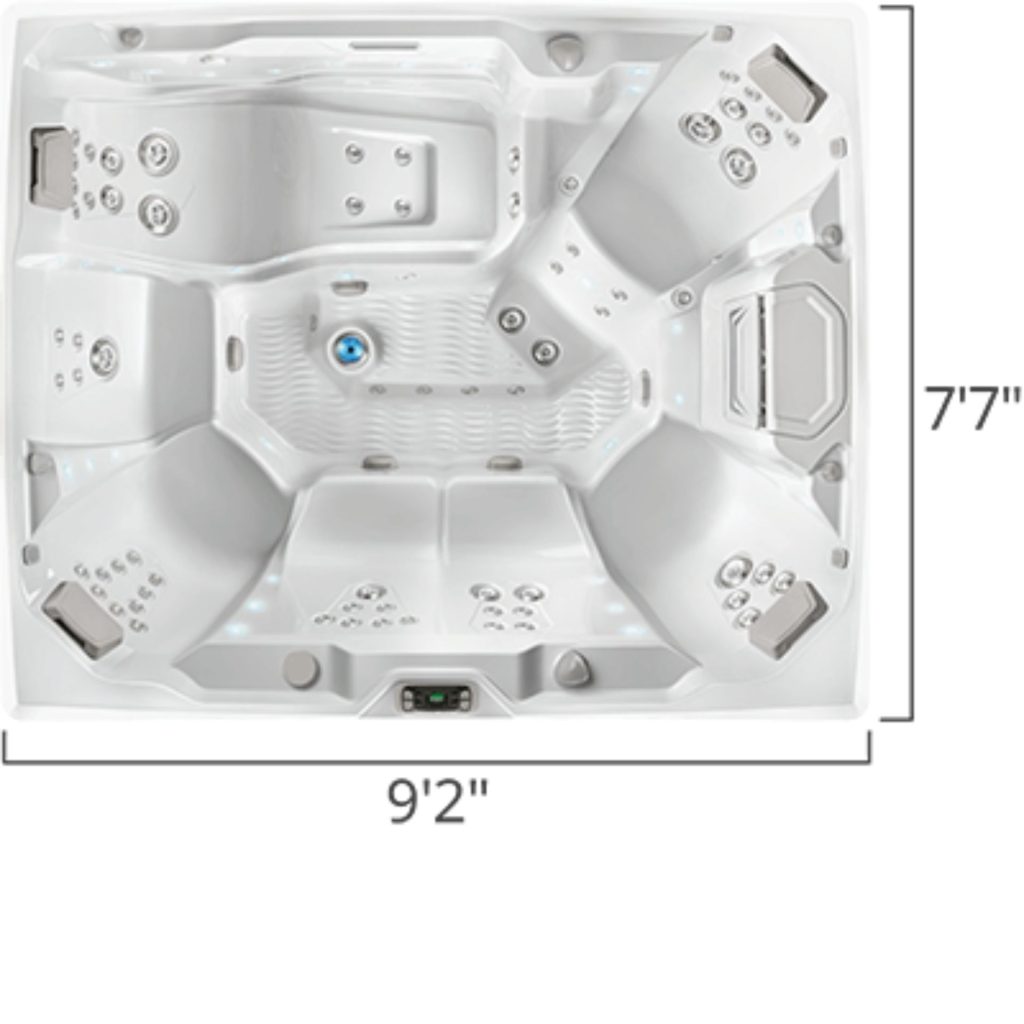

Dimensions
9’2” x 7’7” x 38”
Water Capacity
525 gals
Weight (Dry)
1,190 lbs
Weight (Filled)
6,795 lbs
Spa Shell Options
Alpine White
Ice Gray
Platinum
Desert
Tuscan Sun
Cabinet Options
Coastal Gray
Sable
Espresso
Jets
73
Water Care System
FreshWater® Salt System Ready
Smart Monitoring System
FreshWater® IQ System Ready
Water Feature

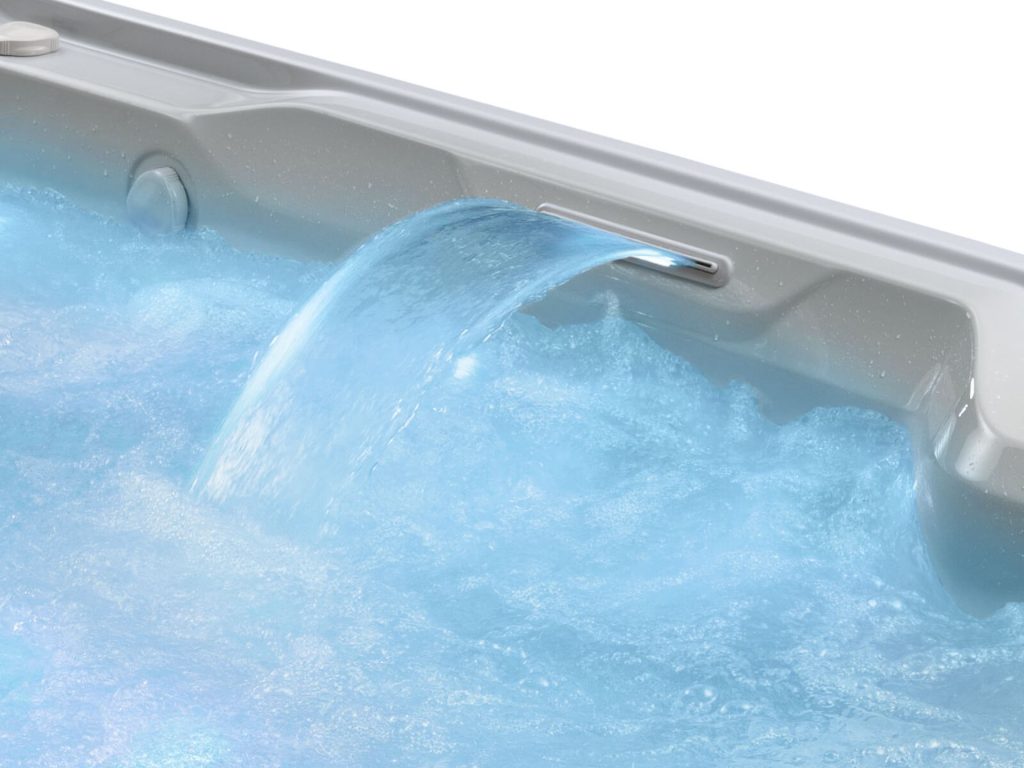

Vidro® Backlit Ribbon Waterfall
Lighting System (Interior)

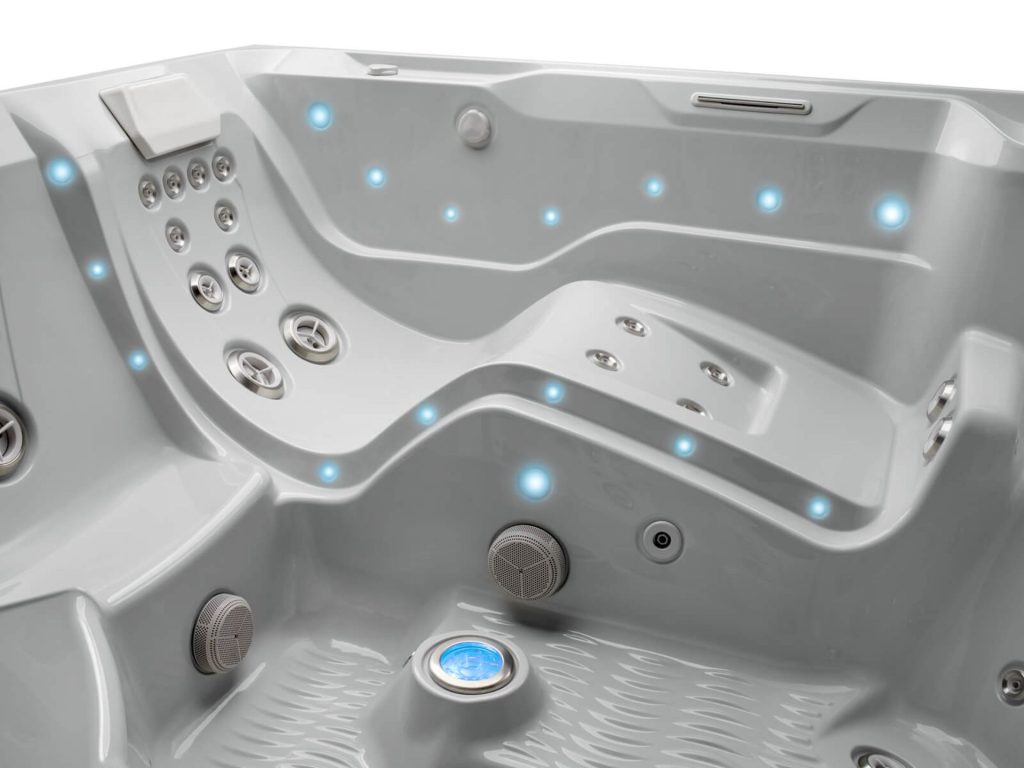

Multi-Color LED Points of Light
Lighting System (Exterior)
Multi-Color LED Lighting with Timer
Control System
IQ 2020® with Color LCD Control
230 V / 50 amp, 60 Hz
Includes G.F.C.I. Protected Subpanel
Heater
Titanium No-Fault® 4,000 W / 230 V
Insulation
FiberCor®
Energy Standards
Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
Jet Pump 1
Wavemaster® 9200
Two-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 2
Wavemaster® 9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 3
Wavemaster® 9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Circulation Pump
SilentFlo 5000®
Effective Filtration Area
150 sq. ft.

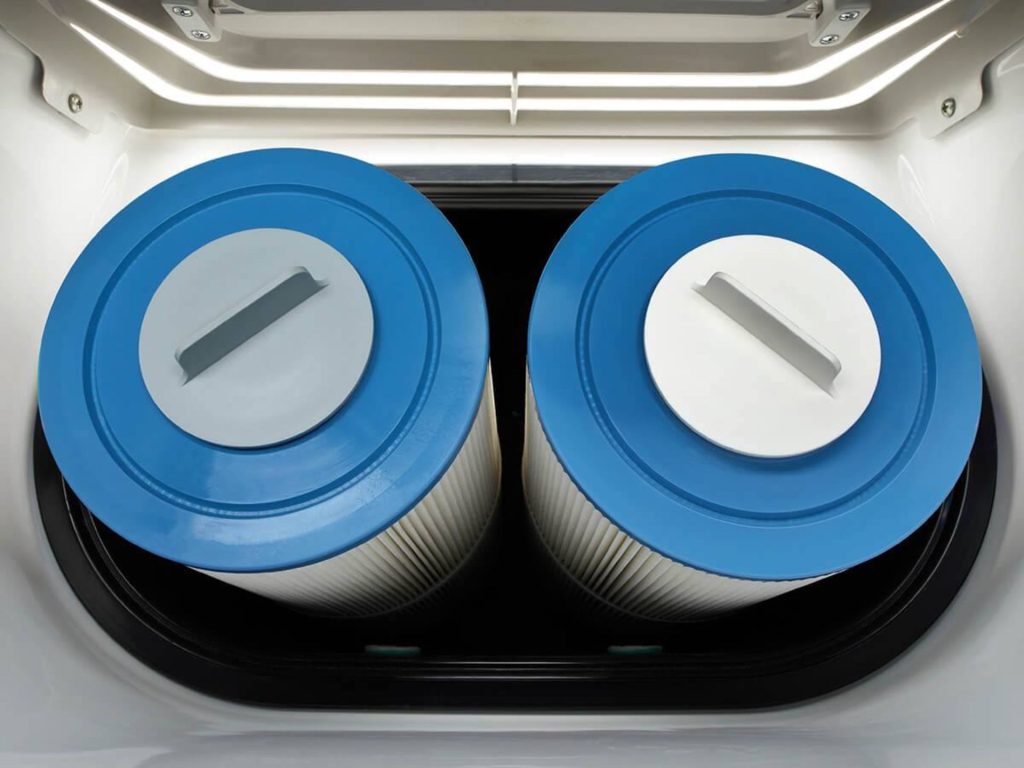

Dual-Action Filtration
Yes
Comfort Control
Yes
SmartJet System
Yes
Custom-Fit Insulated Cover
WeatherPro™ 4" Tapered Core with Hinge Seal
Bottom Seal
Polyethelyne Sealed Bottom
Diagnostic Ready Light
Yes
Smart Spa Technology
Yes
Cover Colors
Storm, Black
Cover Lifters (Optional)
CoverCradle® (Included with Spa)
UpRite®
Steps (Optional)
Limelight® Collection Step or Polymer Step

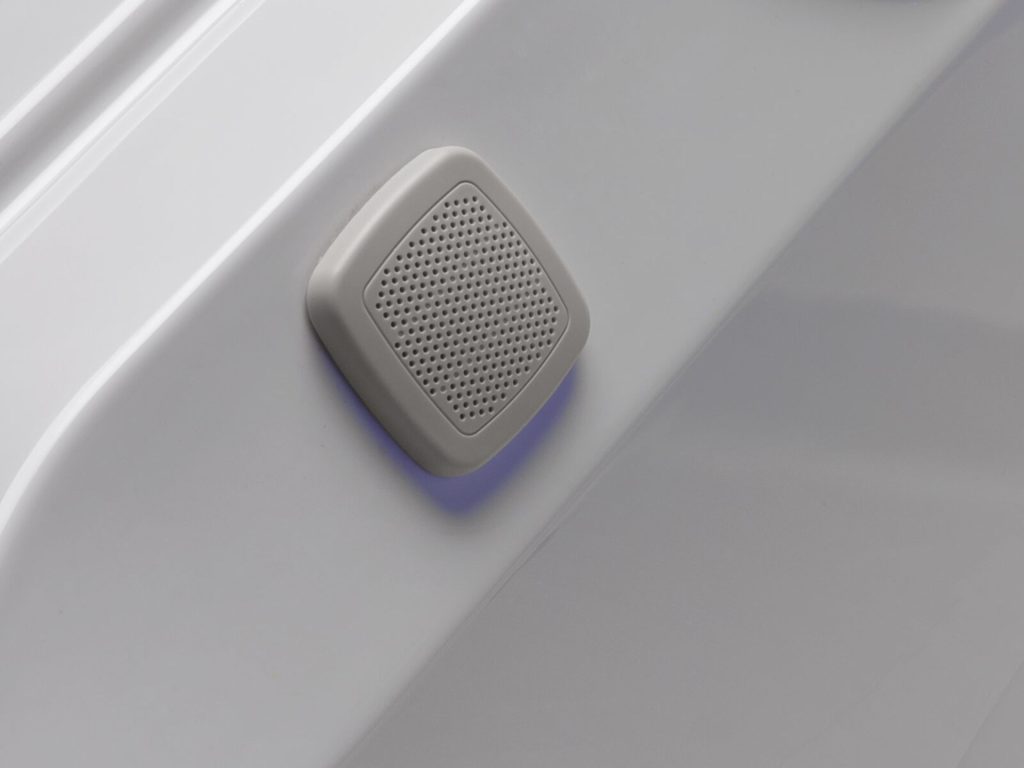

Bluetooth Music System
Yes
Subwoofer
Yes
CoolZone Cooling System
Yes
FreshWater III Ozone System
Yes
Voltage
230 V
No-Leak Shell Warranty
7 Years
Shell Surface Warranty
5 Years
Cabinet Warranty
5 Years
No-Leak Plumbing Warranty
5 Years
No-Fault Heater Warranty
5 Years
Component Warranty
5 Years
Interior Light Assembly Warranty
3 Years
