Aria®

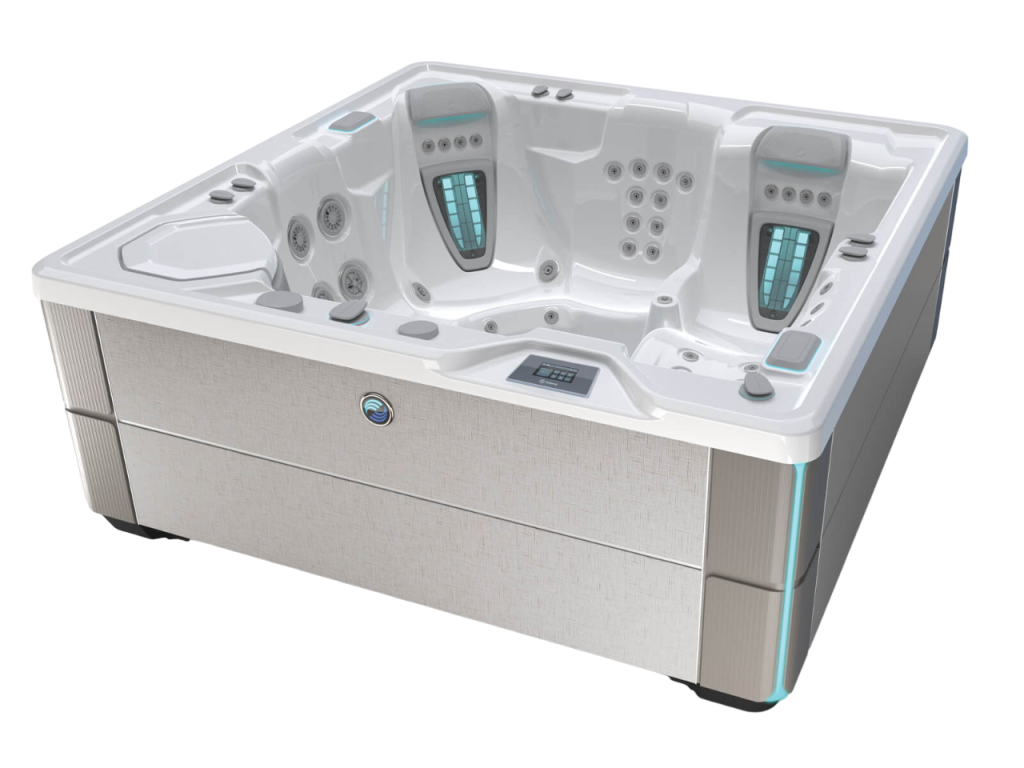

The Aria is a five-seat luxury spa with a lounge seat, two of our exclusive Moto-Massage® DX jets and customizable massage settings for the ultimate in relaxation.

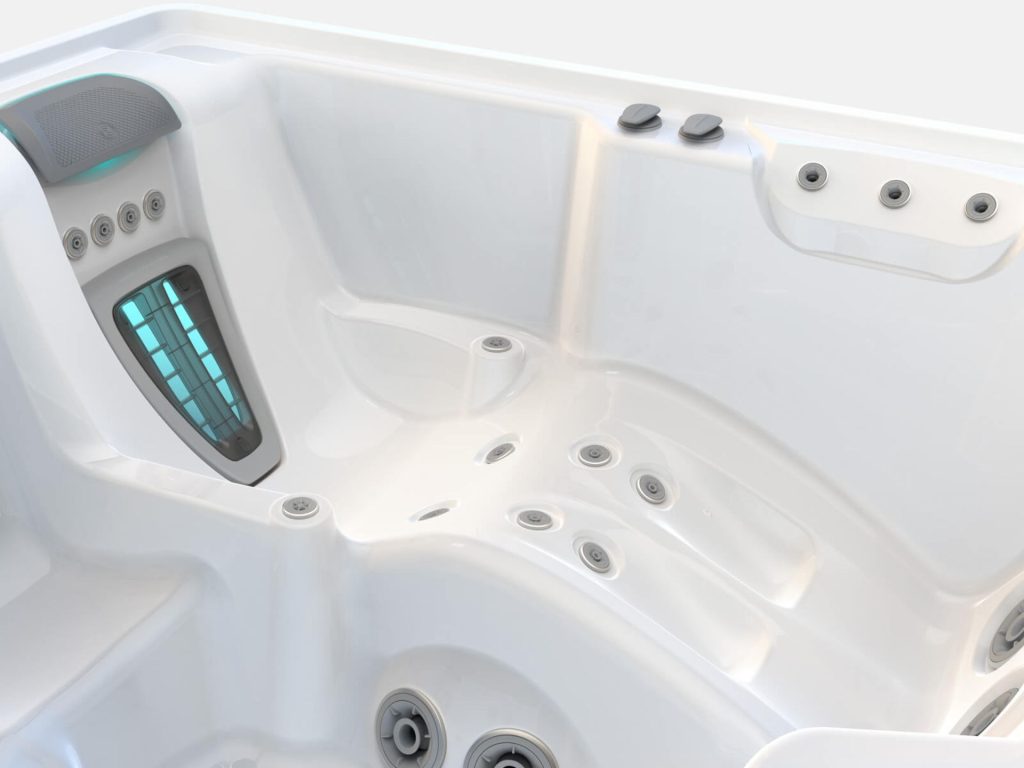

Aria® Jet System
2 jets of this type on the Aria®. See the jet layout diagram for placement.
2 jets of this type on the Aria®. See the jet layout diagram for placement.
4 jets of this type on the Aria®. See the jet layout diagram for placement.
2 jets of this type on the Aria®. See the jet layout diagram for placement.
2 jets of this type on the Aria®. See the jet layout diagram for placement.
2 jets of this type on the Aria®. See the jet layout diagram for placement.
26 jets of this type on the Aria®. See the jet layout diagram for placement.
Aria® Specifications
Seating Capacity
5

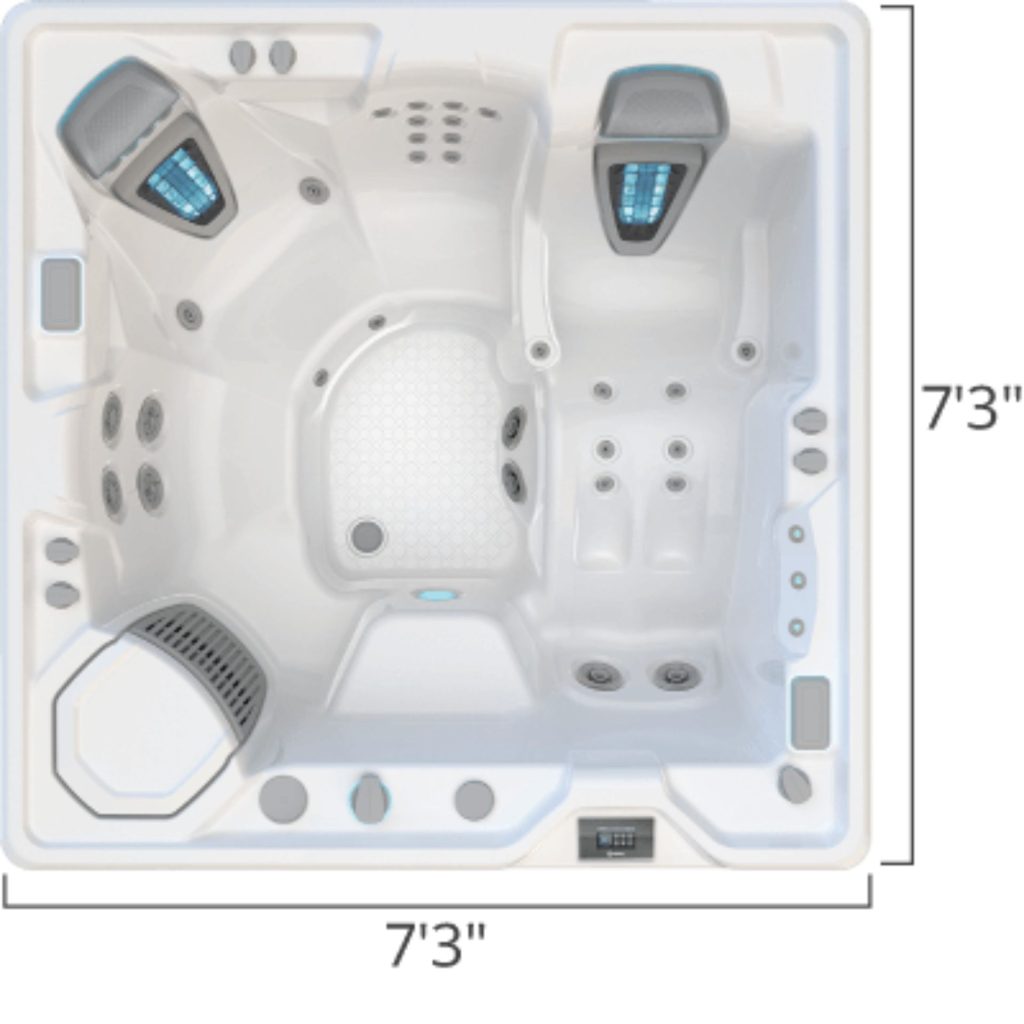

Dimensions
7’3” x 7’3” x 36”
Water Capacity
365 gals
Weight (Dry)
680 lbs
Weight (Filled)
4,600 lbs
Spa Shell Options
Alpine White
Ice Gray
Platinum

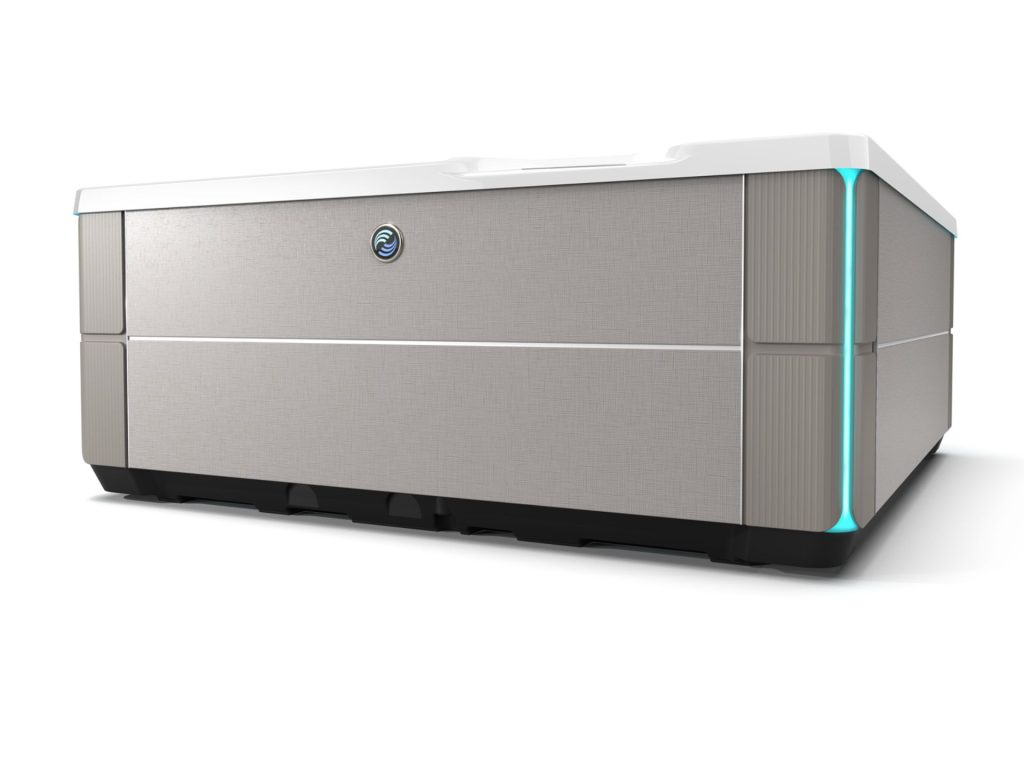

Cabinet Options
Java
Charcoal
Blackwood
Linen
Brushed Nickel
Jets
42
Water Care System
FreshWater® Salt System Included
Smart Monitoring System
FreshWater® IQ System Ready
Water Feature

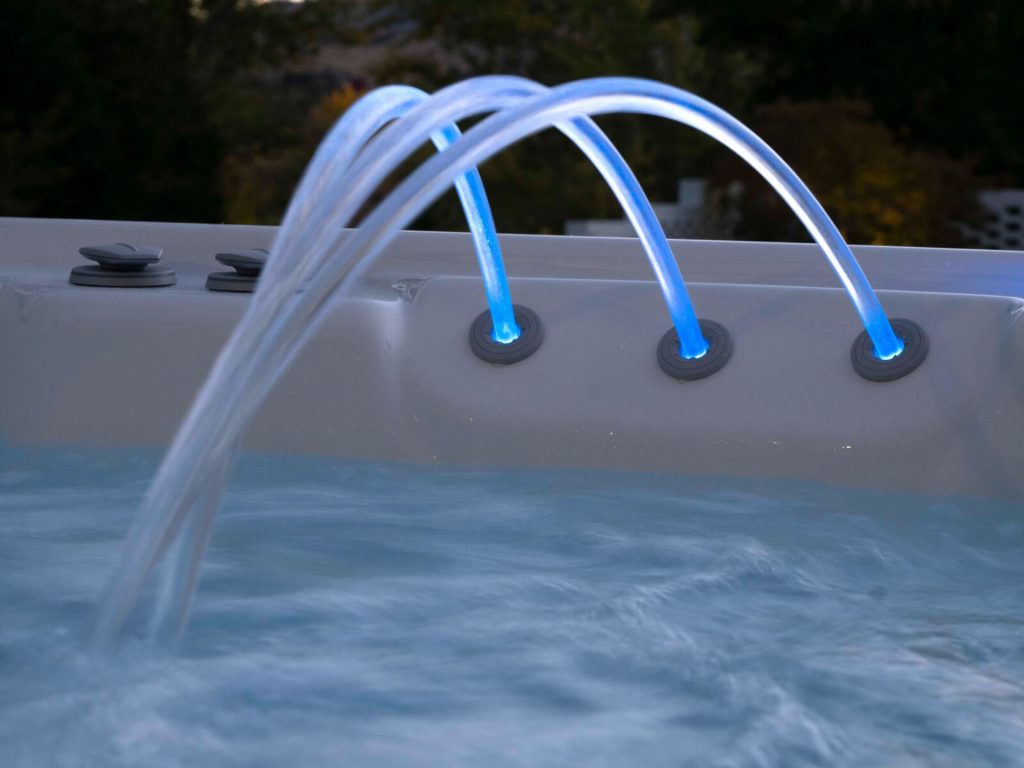

BellaFontana® with Three Illuminated Arcs of Water
Lighting System (Interior)
Customizable LED Zone Lighting
Lighting System (Exterior)
Multi-Color LED Lighting with Timer

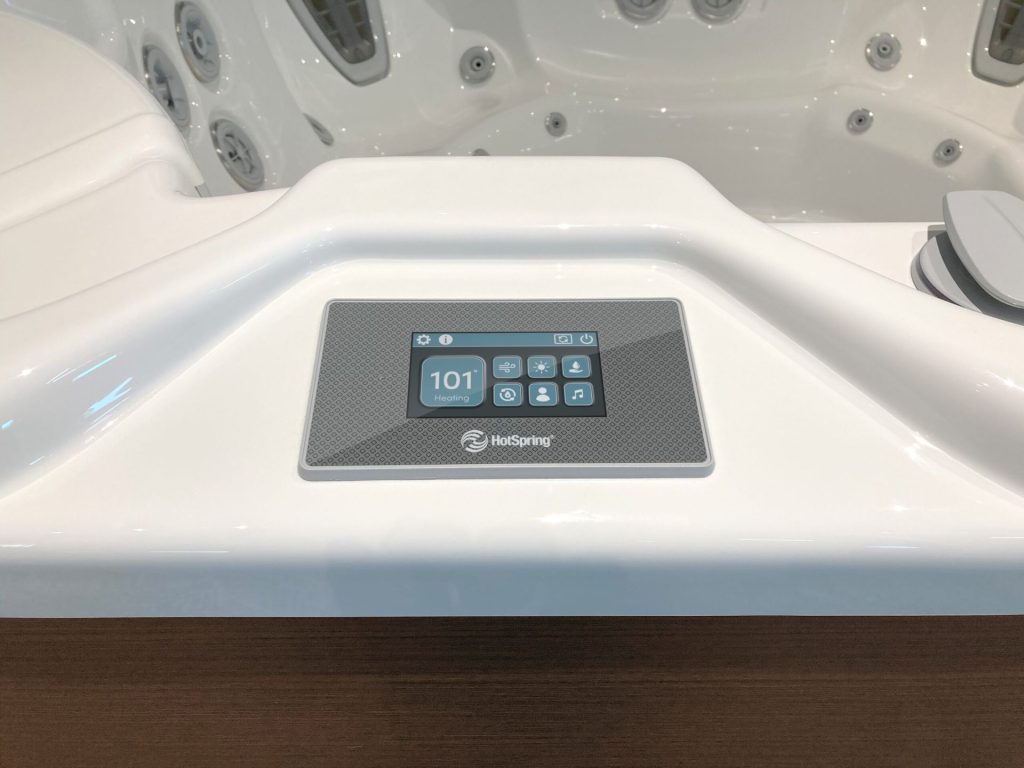

Control System
IQ 2020® with Color LCD Touchscreen
230 V / 50 amp, 60 Hz
Includes G.F.C.I. Protected Subpanel
Heater
Titanium No-Fault® 4,000 W / 230 V
Insulation
Multiple Layers of Urethane Foam
Energy Standards
Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
Jet Pump 1
Wavemaster® 9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 2
Wavemaster® 9200
Two-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Circulation Pump
SilentFlo 5000®
Effective Filtration Area
325 sq. ft.
No-Bypass Filtration
Yes
High-Flow Tri-X Filters
Yes
Comfort Control
Yes
SmartJet System
Yes
Floor Drain
Yes
Patented Pump Shroud
Yes
Custom-Fit Insulated Cover
WeatherPro™ 4" Tapered Core with Hinge Seal
Bottom Seal
Insulated Polymeric Base Pan
Diagnostic Ready Light
Yes
Polymeric Substructure
Yes
Cover Colors
Black, Gray, Shadow, Storm
Cover Lifters (Optional)
CoverCradle®
CoverCradle II
UpRite®
Lift ‘n Glide®
Steps (Optional)
Highlife® Collection Step

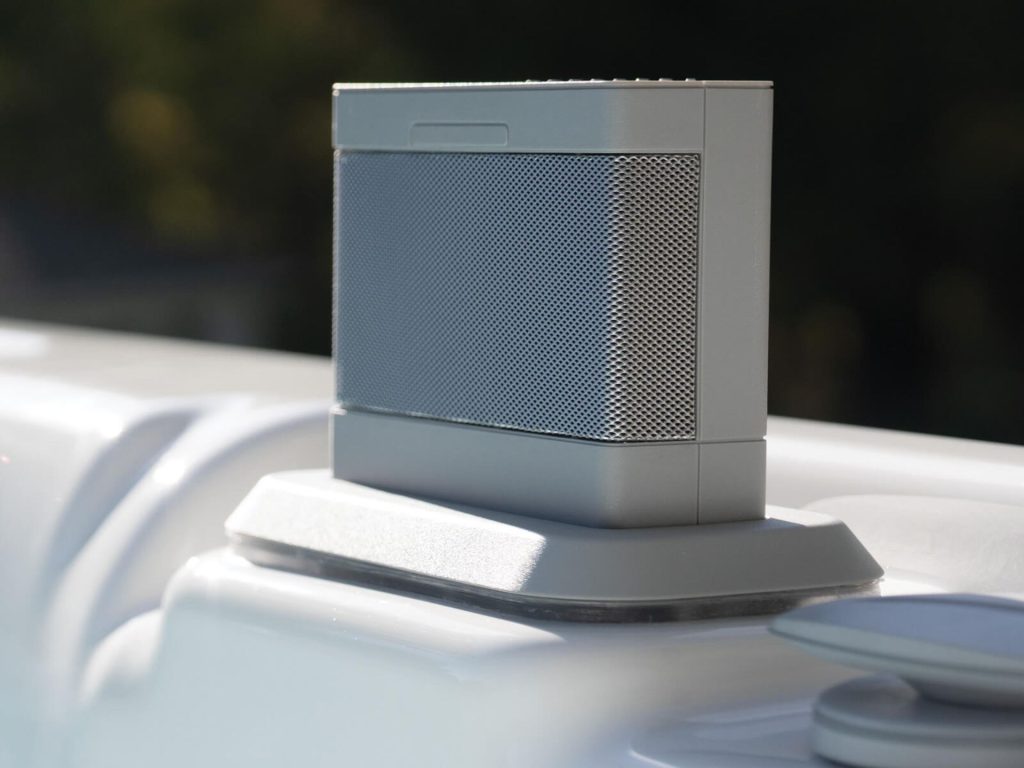

Bluetooth Music System
Yes
Subwoofer
Yes
CoolZone Cooling System
Yes
FreshWater III Ozone System
Yes
Voltage
230 V
No-Leak Shell Warranty
7 Years
Shell Surface Warranty
7 Years
Cabinet Warranty
5 Years
No-Leak Plumbing Warranty
5 Years
No-Fault Heater Warranty
5 Years
Component Warranty
5 Years
Interior Light Assembly Warranty
2 Years
Wireless Remote Control Battery Warranty
1 Year
